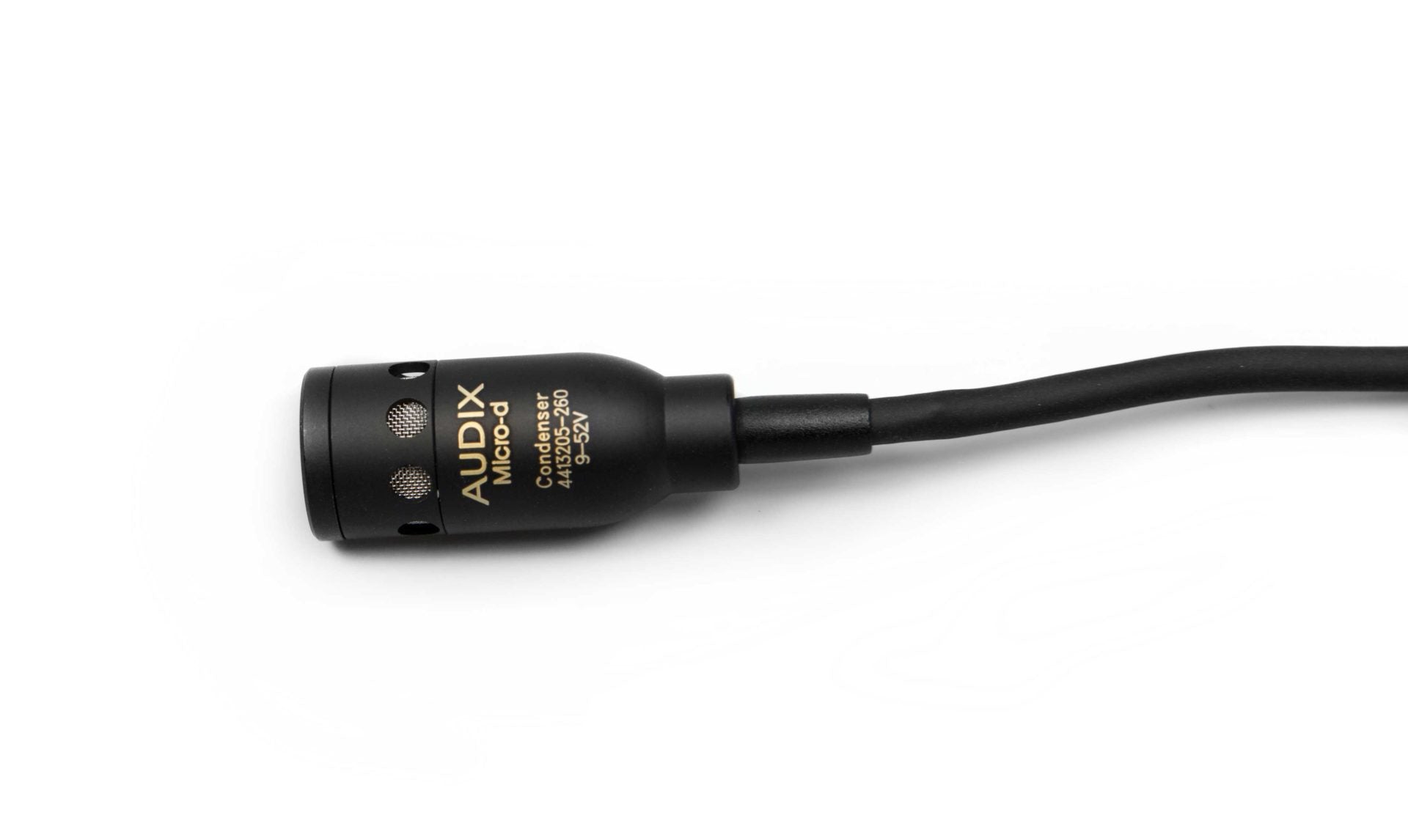

MINIATURE CONDENSER INSTRUMENT MICROPHONE
The MicroD is primarily a drum and percussion instrument microphone for professional stage and studio applications. The MicroD has a uniformly controlled hypercardioid polar pattern and a smooth, accurate response in its frequency range.

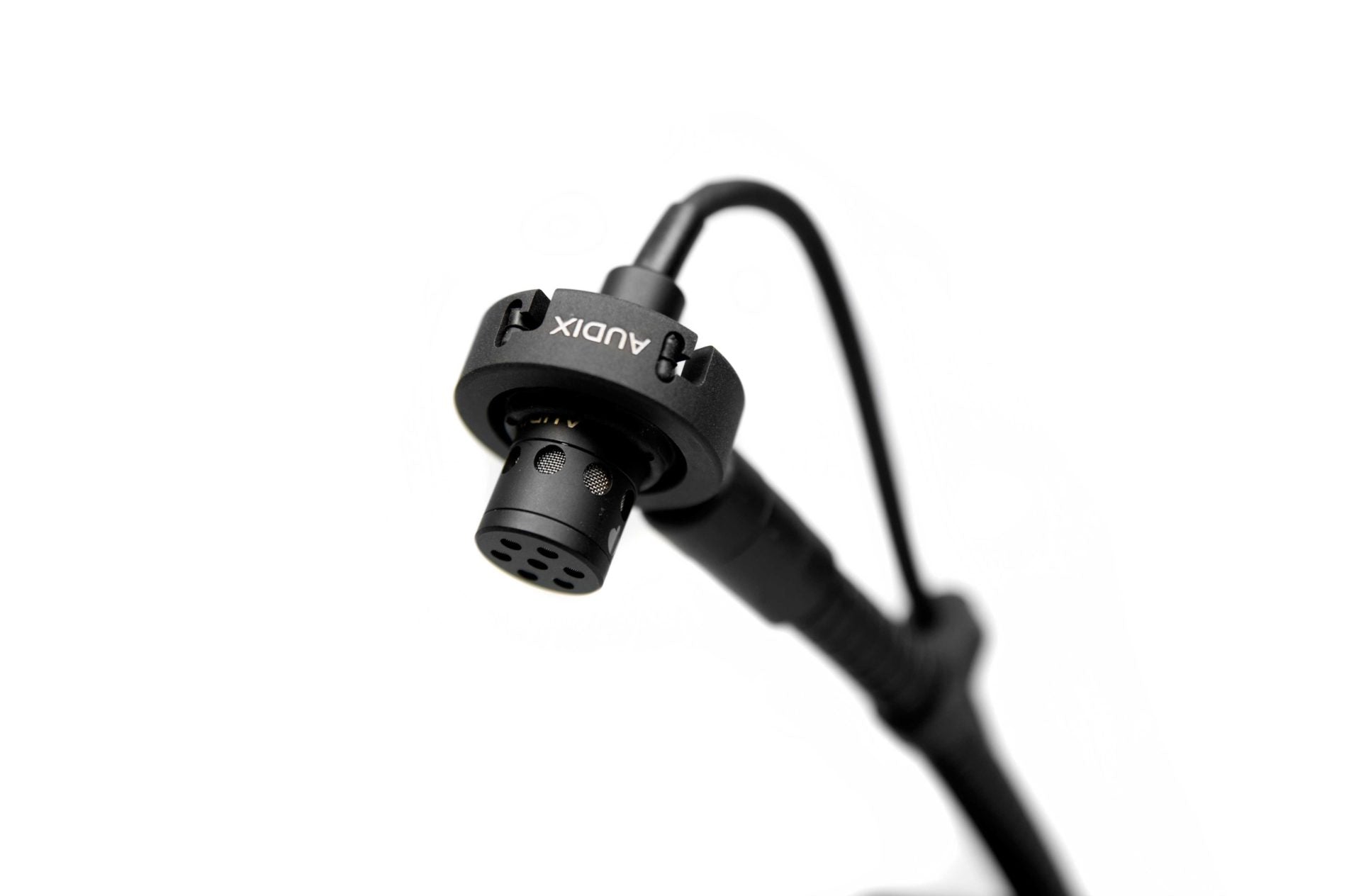

This microphone is lightweight, compact, and simple to use. The MicroD is housed in an aluminum ring and isolated by means of a rubber shock mount system. The MicroD hypercardioid microphone attaches easily and firmly to a standard drum rim utilizing the patented DVICE rim mount system.
Designed, machined, assembled, and tested by Audix in the USA.
What's in the box?
1x MicroD Instrument Microphone
1x 6′ Shielded Cable

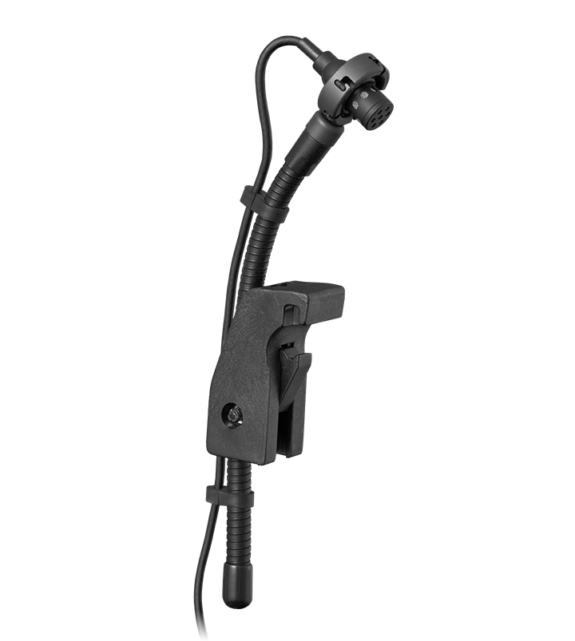

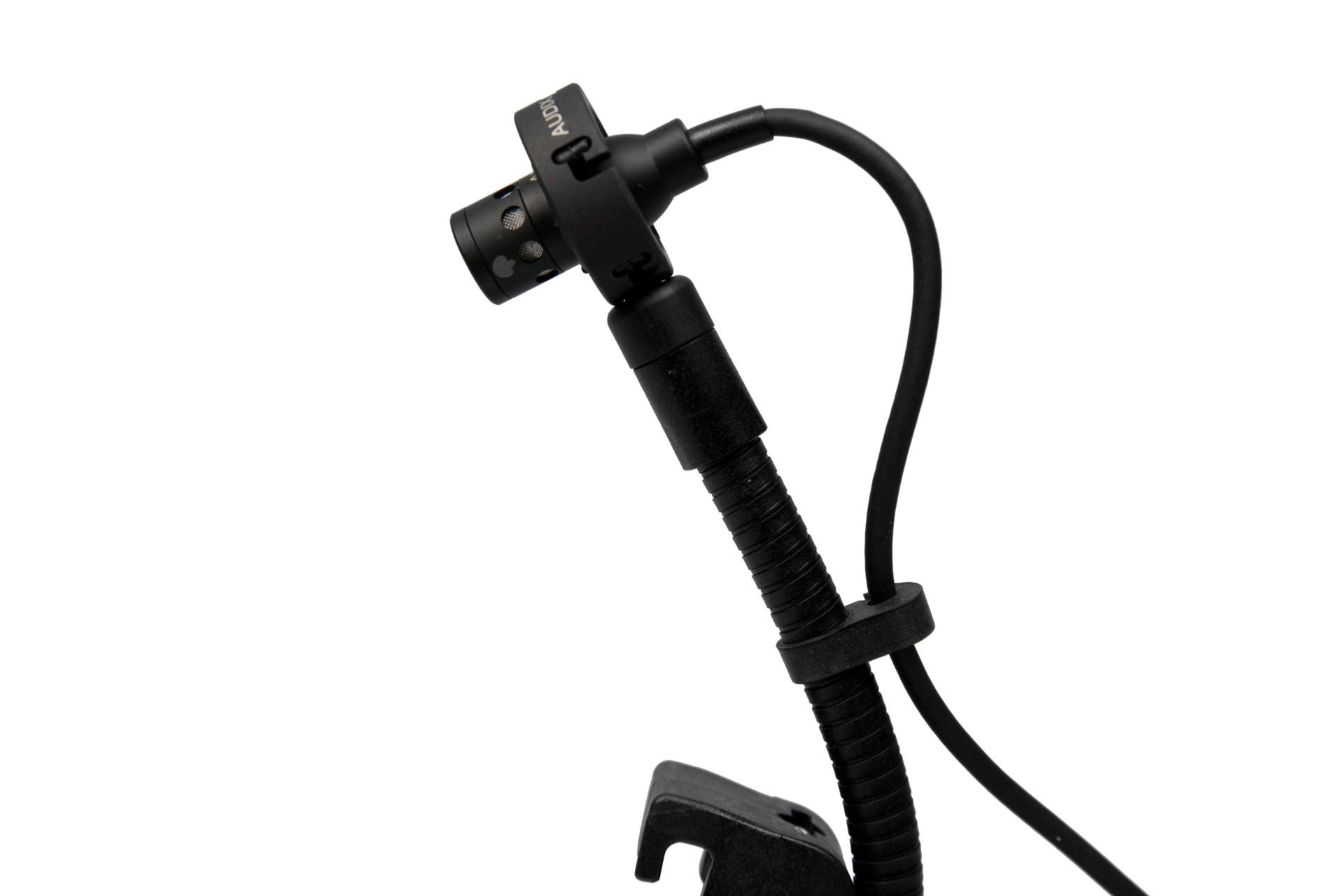

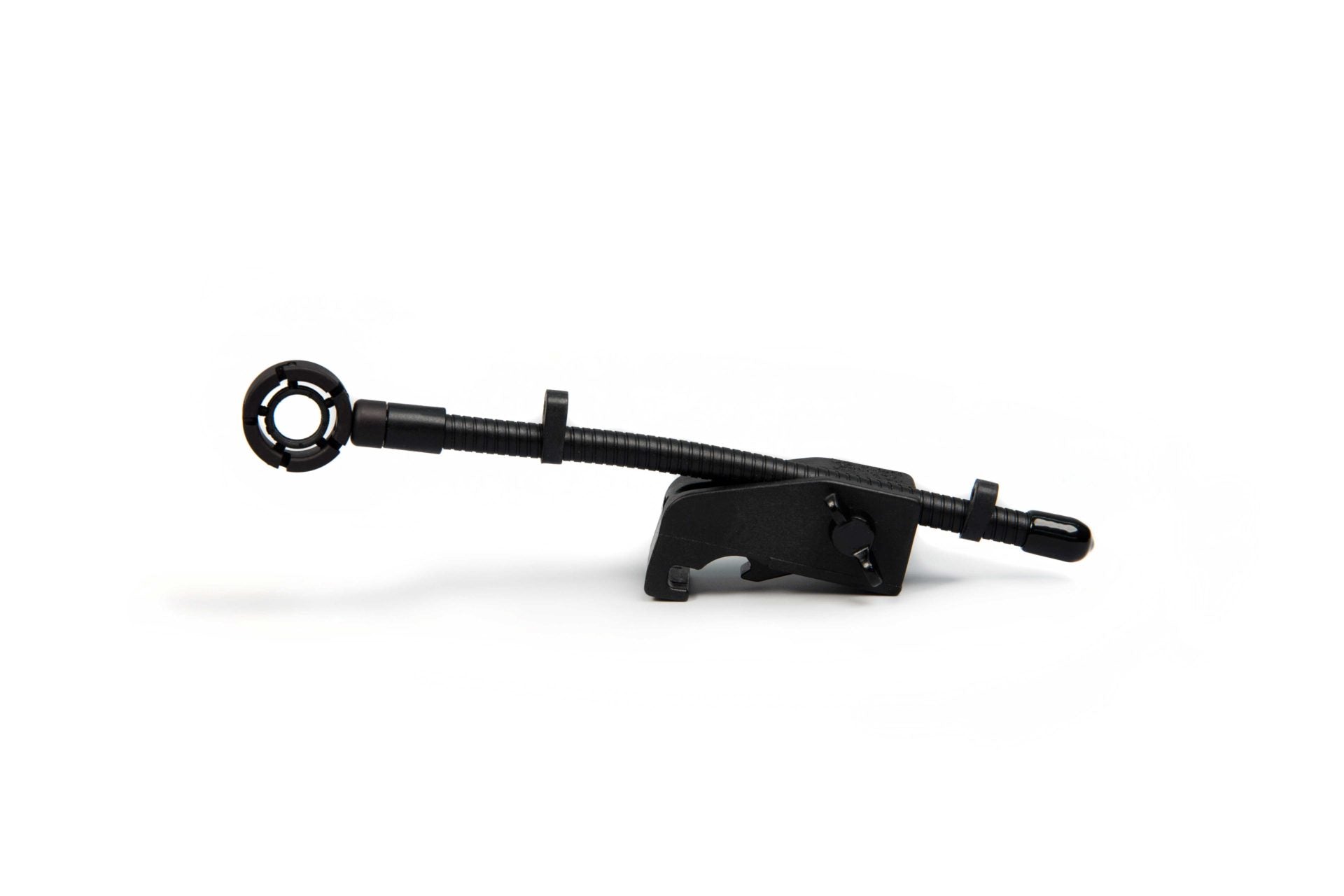

1x DVICEMICRO Optional Flexible Mini-gooseneck with Springloaded Rim Mount Clamp
1x APS910 48 V Phantom Power Adapter
1x WS20 External windscreen
1x P1 Carrying Pouch
Stock changes on a daily basis, current lead times on some models is 1-2 weeks. Contact us prior to ordering if you have any concerns.
| Transducer Type | Pre-Polarized Condenser |
| Frequency Response | 40 Hz – 20 kHz |
| Polar Pattern | Hypercardioid |
| Output Impedance | 250 ohms |
| Sensitivity | 5.6 mV / Pa @ 1k |
| Equivalent Noise Level | 24 dB |
| Signal to Noise Ratio | 70 dB |
| Maximum SPL | ≥140 dB |
| Power Requirements | 9 – 52 V phantom |
| Connector | 3-pin mini to 3-pin XLRm (APS910) |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector |
| Materials / Finish | Machined Brass Capsule / Black Finish |
| Gooseneck | Flexible Steel |
| Weight | 47 g / 1.6 oz |
| Length | 30 mm / 1.14 in |
